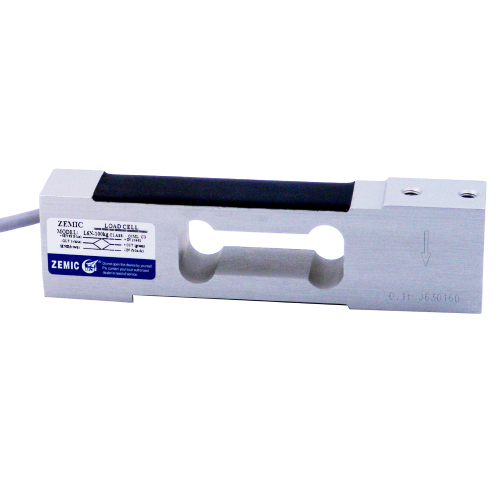

The ZEMIC L6N is an Aluminium-alloy IP65 Single-Point Load Cell. It is ideal for platform and other electrical weighing devices. This ZEMIC L6N load cell is colorless anodized and made of an aluminum alloy. Offering a wide range of capacities, this load cell also has a cable length of 10 ft.
- Aluminium-alloy IP65 single point load cell.
- Colourless anodized.
- Suitable for single or double load cell structured platform scales, medcial scales.
- Maximum platform size: 350 x 400 mm.
Zemic’s L6N anodised aluminium alloy constructed IP65 single point load cell. Class C3 & C4 OIML R60 Approved, for total protection from ingress of dust. It offers Class 3 and 4 OIML R60 approvals for unrivalled protection against dust build-up. Ideally suitable for electronic weighing equipment like pricing scales, bench scales, compact scales and small platforms.
Constructed from IP65-rated anoidised aluminium, this load cell is ideally suited to low-profile weighing equipment incluidng retail scales, bench scales, compact scales and small platforms.
Supplied with 3m (6 core screened cable) length, more than enough for local connection to indicator.
| Accuracy class | OIML R60 C3 | OIML R60 C4 | |
| Output sensitivity ( = FS ) | mV/V | 2.0 ± 0.2 | |
| Maximum capacity ( Emax ) | kg | 3, 5, 8, 10, 15, 20, 30, 50,
75, 100 |
15, 20, 30, 50, 75 |
| Max.number of load cell intervals | nLC | 3000 | 4000 |
| Ratio of min. LC verification interval | Y = Emax / vmin | 12000 | 20000 |
| Combined Error | %FS | ≤± 0.0230 | ≤± 0.0175 |
| Minimum dead load | Of Emax | 0% | |
| Safe overload | of Emax | 150 % | |
| Ultimate overload | of Emax | 300 % | |
| Zero balance | of FS | < ± 2.0 % | |
| Excitation, recommended voltage | V | 5 ~ 12 | |
| Excitation maximum | V | 18 | |
| Input resistance | Ω | 409 ± 6 | |
| Output resistance | Ω | 350 ± 3 | |
| Insulation resistance | MΩ | ≥5000 ( at 50VDC ) | |
| Compensated temperature | °C | -10 ~+40 | |
| Operating temperature | °C | -35 ~ +65 | |
| Storage temperature | °C | -40 ~ +70 | |
| Element material | Aluminium | ||
| Ingress Protection (acc. to EN 60529) | IP65 | ||
| Recommended torque on fixation | Nm | M6: 10 | |
