AED 114.00

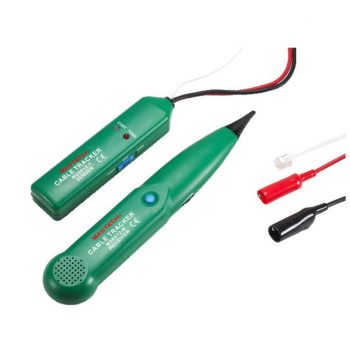

The Cable Tracker is designed to identify and trace wires or cables within a group without damaging the insulation. For telephone line, it can identify some state in the line, and more convenience to install, debug, maintain telephone line. There are a Sender(MS6812-T) and a Receiver (MS6812-R) included in The Cable Tracker.
Features:
- Tone Generator Output (Square Waveform):
– Single (1500Hz)
– Dual (1300~1500Hz)
- Send Tone Frequency: 1.5kHz
- Receive Frequency: 100Hz~300kHz
- Instruction: Sound and Light
- Cont and Tone LED Light
| Model Number | Range |
| MS-6812 | 100 ~ 300kHz |
AED 114.00
The Cable Tracker is designed to identify and trace wires or cables within a group without damaging the insulation. For telephone line, it can identify some state in the line, and more convenience to install, debug, maintain telephone line. There are a Sender(MS6812-T) and a Receiver (MS6812-R) included in The Cable Tracker.
Overview:
- Power Supply: 2*9V 6F22 Battery
- Receive Size: R: 238mm*43mm*26mm/9.4″*1.7″*1.0″
- Emitter Size: T: 145mm*35mm*25mm/5.7″*1.38″*0.98″
- Receive Weight: R: 71g/0.16Ib
- Emitter Weight: T: 87g/0.2lb
- Safety Rating: CE(EMC) RoHS
- Judge Continuity of the Cable or Wires
- Track the Cables or Wires, and Diagnose the Break Point
- Receive the Tone Signal on the Cables or Wires (Telephone Line)
- Identify the State in the Working Telephone Line (Clear, Ringing, Busy)
- Send a Single Solid or a Dual Alternating Tone to the Target Cables or Wires.
